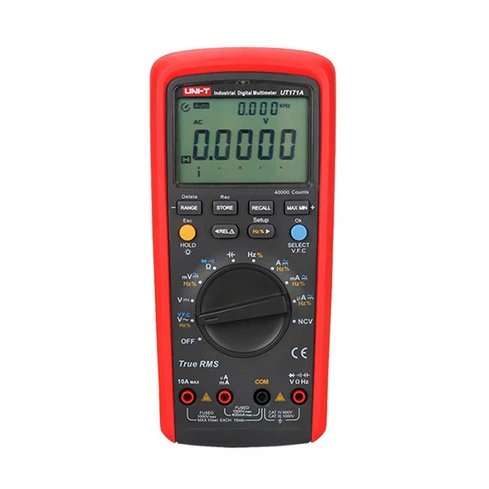

UNI-T UT171A multimeter is an industrial-grade multimeter used by professionals. The UT-171A electronics RMS multimeter, Its built-in square wave output is useful for troubleshooting industrial control signals. UT 171 A true RMS meter, its LoZ (ACV) feature can be used to identify residual (ghost) voltage in large capacitors. This digital meter is with smart design and fast working features.
Features Of UNI-T Best RMS True Multimeter UT 171A:
- Variable square wave signal output (frequency 0.5Hz ~4800Hz, low impedance) & 40000 / 60000 Counts / True RMS;
- Measurement speed (5 times /s) is two times faster than the others & AC LoZ Voltage test;
- AC / DC uA / mA / A current test & AC+DC measurement mode;
- Resistance, electrical conductivity nS measurement & VFC household / industrial frequency conversion voltage test;
- Electronic storage record 1000 & CAT III 1000V / CAT IV600V.
Specification Of DC/AC V/A Ohm/Hz Capacitance Tester UT-171A:
- DC Voltage: 400mV/4V/40V/400V/1000V
- DC Voltage Accuracy: ±(0.025%+5)
- AC Voltage: 400mV/4V/40V/400V/1000V
- AC Voltage: Accuracy: ±(0.4%+40)
- DC Current: 400μA/4000μA/40mA/400mA/4A/10A
- DC Current Accuracy: ±(0.15%+10)
- AC Current: 400μA/4000μA/40mA/400mA/4A/10A
- AC Current Accuracy: ±(0.75%+20)
- Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- Resistance Accuracy: ±(0.05%+2)
- Capacitance: 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF
- Capacitance Accuracy: ±(2.5%+40)
- Frequency: 10Hz~10MHz
- Frequency Accuracy: ±(0.01%+5)
- Display Count: 40000
- Auto/Manual Range: Yes
- True RMS: Yes
- Bandwidth: 100kHz
- VFC: Yes
- Diode test: Yes
- Continuity Buzzer: Yes
- Duty Cycle: Yes
- NCV: Yes
- Data Hold/MAX/MIN: Yes
- Relative Mode: Yes
- Data Storage: 1000
- USB Interface: Yes
- LCD Display: Yes
- LCD Backlight: Yes
- Analogue Bar Graph: 31
- Mis-plug Alarm: Yes
- Low Battery Indication: Yes
- Auto Power Off: Yes
- Input Protection: Yes
- Input Impedance for DCV: Around 10MΩ
- Power: 6x 1,5V AAA
- LCD Size: 70,6x49,5mm
- Weight: 384g
- Size: 206x95x55mm
Package includes:
- 1 x UNI-T UT171A Professional Intelligent Digital Multimeter
- 2 x Test Leads
- 1 x Point contact temperature probe
- 1 x USB interface cable
- 1 x PC software CD
- Batteries
