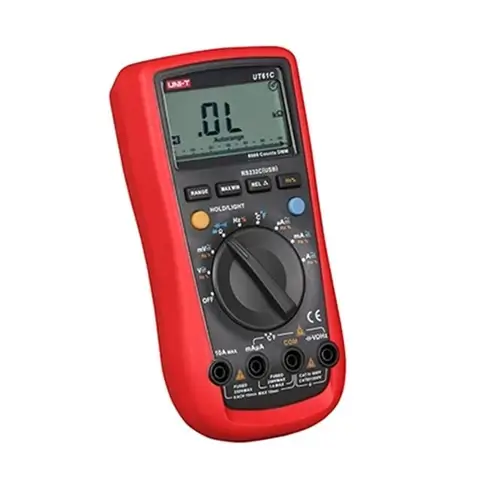

UNI-T UT61C digital multimeter is a high-quality multifunction pocket multimeter. This convenient best digital multimeter is powered from a 9 V battery. UNI-T UT-61C unity multimeter is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency, temperature) and tests (diode, continuity) and auto power-off function, analogue bar graph, data hold function. This multimeter tester is an auto range meter with 6000 display count, featuring 61 segment analogue bar display and 1kHz bandwidth.
Features Of Best Multimeter For Electricians UT-61C:
- Auto range
- MAX/MIN/REL mode
- Auto power off
- LCD backlight
- RS-232 and USB interface
- Analog bar graph
- Low battery indication
- K-type temperature probe
- Diode/continuity buzzer
- Data hold
- Input protection
Specifications Of UNI-T Multimeter UT61C:
- Model: UT61C
- DC Voltage (V): 60mV/600mV/6V/60V/600V/1000V ±(0.5%+1)
- AC Voltage (V): 60mV/600mV/6V/60V/600V/750V ±(1.0%+3)
- DC Current (A): 600μA/6000μA/60mA/600mA/6A/10A ±(1.0%+3)
- AC Current (A): 600μA/6000μA/60mA/600mA/6A/10A ±(1.2%+5)
- Resistance (Ω): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+2)
- Capacitance (F): 40nF/400nF/4μF/40μF/400μF/4000μF ±(3.0%+5)
- Frequency (Hz): 10Hz-10MHz ±(0.1%+4)
- Temperature (°C): -40°C~1000°C ±(1.2%+3)
- Temperature (°F): -40°F~1832°F ±(1.2%+4)
- Display Count: 6000
- Auto Range: Yes
- Bandwidth (Hz): 45Hz~1kHz
- Duty Cycle: 0.1% ~ 99.9%
- Diode: Yes
- Auto Power Off: Around 15 minutes
- Continuity Buzzer: Yes
- Low Battery Indication: ≤7.5V
- Data Hold: Yes
- Relative Mode: Yes
- MAX/MIN: Yes
- RS-232: Yes
- LCD Backlight: Yes
- Analog Bar Graph: 61
- Input Protection: Yes
- Input Impedance for DCV: Around 10MΩ
- Power: 9V Battery (6F22)
- LCD Size: 65mm X 43mm
- Product Color: Red and grey
- Product Net Weight: 370g
- Product Size:180mm X 87mm X 47mm
Package includes:
- 1 x UNI-T UT61C Digital Multimeter Unit
- 2 x Test leads
1 x - K-type temperature probe
- 1 x Multi-purpose socket
- 1 x Battery(Installed)
- 1 x USB Cable
- 1 x CD with Installation Guide & Computer Software
- 1 x User manual
