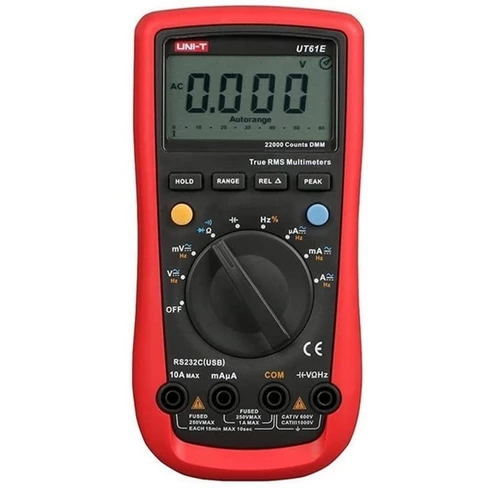

UNI T Modern Digital Multimeter UT61E

The Unit-Trend UT61E Meter can measure AC/DC voltage and current, resistance, diode, continuity buzzer, capacitance, frequency. Digital multimeter UT61E, In addition to the conventional measuring functions, there is an RS232C or USB standard serial port, data hold, relative mode, peak measurement, low battery display, display backlight and sleep mode. The UT-61E true RMS meter is popular among hobbyists and those looking for a second standby multimeter. An RMS multimeter, it is noted for its data logging function and 4½ digit display and is pretty precise considering the price point. The UT 61 E auto-range meter can measure volts, amps, ohms and even capacitance and frequency. Its high resolution, high resistance and frequency ranges, plus DC voltage default make it especially appealing to electronics enthusiasts.

Features Of Best True RMS Multimeter UNI-T UT61E:

• LCD display.
• Data hold function.
• Analog bar graph.
• Auto/manual ranging.
• Relative measurements mode (REL).
• Multiple measurements:
• • AC voltage.
  • DC voltage.
  • AC current.
  • DC current.
  • Resistance.
  • Capacitance.
  • Frequency.
  • Diode testing.
  • Continuity test.
• Continuity buzzer.
• Battery power.
• Interface: RS232, USB.
• Easy to connect and operate.
• Electrical safety: EN61010-1, CATII600V/CATI1000V.

Specifications Of UNI-T UT61E AC/DC Modern Digital Auto Ranging Multimeter:

1. DC voltage (V): 1000V ±(0.1%+2)
2. AC voltage (V): 750V ±(0.8%+10)
3. DC current (A): 10A ±(0.5%+10)
4. AC current (A): 10A ±(0.8%+10)
5. Resistance (Ω): 220MΩ ±(0.5%+10)
6. Capacitance (F): 220mF ±(3%+5)
7. Frequency (Hz): 10Hz~220MHz ±(0.01%+5)
8. Display count: 22000
9. Bandwidth (Hz): 45Hz~10kHz
10. Duty cycle: 0.1%~99.9%
11. Power: 9V battery (6F22)
12. Display: 65mm x 43mm
13. Product colour: Red and grey
14. Product net weight: 370g
15. Product size: 180mm x 87mm x 47mm

Package includes:

• 1 x UNI-T UT-61E Modern Digital Multimeter
• 2 x Test leads
• 1 x Multi-purpose socket
• 1 x Battery
• 1 x USB cable
• 1 x CD with Installation Guide & Computer Software
• 1 x User manual
