The UNI-T UT70A meter is a handheld digital multimeter with advanced design. The UT-70A professional multimeter has multiple functions, large display screen and reliable performance, at a much lower price than you would expect to pay for a multimeter of this quality. This pocket multimeter is able to measure voltage & current (AC & DC),
resistance,
capacitance,
inductance,
frequency, temperature, forward voltage drop of diodes, transistor hFE, continuity test & TTL LOGIC level measurement. You can buy this UNI-T UT70A advanced meter from all over Pakistan.
Features Of Uni-t UT-70A Modern Digital Multi-purpose Multimeter:
- Functions:
- AC/DC current and voltage
- resistance
- capacitance
- frequency
- inductance
- temperature (ºC or ºF)
- continuity test (with buzzer)
- diode test
- transistor test
- TTL logic test
Manual ranging
Fused 10A range
Data Hold function
Peak Hold function
Auto power off
Sleep mode
Low battery indication
Specifications Of Digital multimeter UNI-T UT70A:
- DC Voltage: 200mV / 2V / 20V / 200V / 1000V
- DC voltage accuracy: +/- (0.5%+1)
- AC Voltage: 200mV / 2V / 20V / 200V / 750V
- AC voltage accuracy: +/- (0.8%+3)
- DC Current: 20µA / 2mA / 200mA / 10A
- DC current accuracy: +/- (0.8%+1)
- AC Current: 20µA / 2mA / 200mA / 10A
- AC current accuracy: +/- (1%+3)
- Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm / 2000 MOhm
- Resistance accuracy: +/- (0.8%+1)
- Capacitance: 20nF / 200nF / 2uF / 100uF
- Capacitance accuracy: +/- (2.5%+5)
- Frequency: 2kHz - 10MHz (auto)
- Frequency accuracy: +/- (0.1%+3)
- Inductance: 2mH / 20mH / 200mH / 20H
- Inductance accuracy: +/- (2%+10)
- Temperature: from -40 to +1000°C, from -40 to +1832°F
- Temperature accuracy: +/-1%+3 (°C), +/-1%+4 (°F)
- TTL Logic Test: (High > 2.0V, Low < 0.8V)
- Power: 9V bat.
- Product size: 195 x 90 x 40mm
- Product weight: 620g

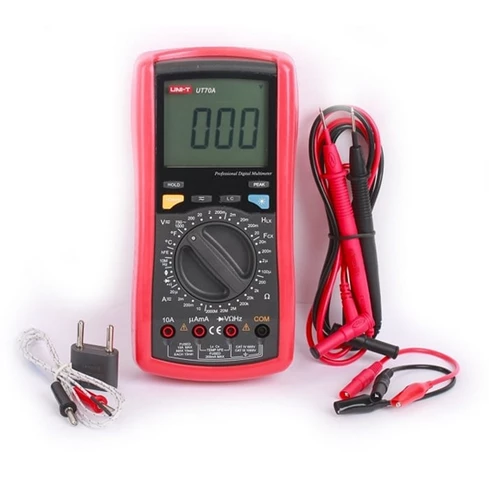

Package includes:
- 1 x UNI T Multi-Purpose Digital Multimeter UT70A
- 2 x Test leads
- 2 x Test clips
- 1 x Point Contact Temperature Probe
- 1 x Multi-Purpose Socket
- 1 x user manual
