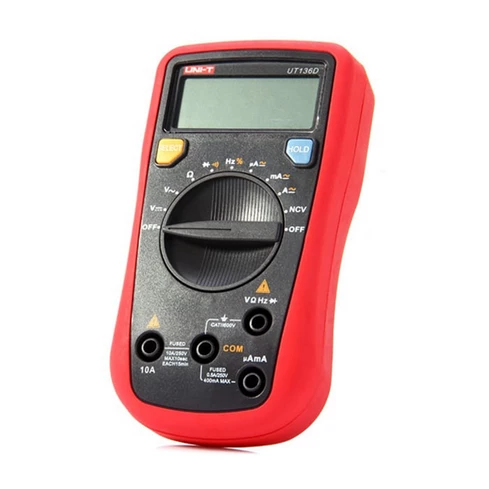

UNI-T UT136D auto-range palm-size meter is part of UT136 series digital multimeters. UT-136D meters are general type auto ranged meters. This UT 136 D multimeter is small in size, handy for all operating environments. This fastest multimeter, 4000 counts auto-range feature allows quick and effective measurements. UT136 series handheld multimeters are great tools for electricians and DIYers. Applicable fields are homes, schools, metallurgy, communications, manufacturing, national defence, electric power, chemical industry, etc, and the series is the best choice for electric circuit/equipment maintenance and repair.
Features Of UNI-T UT136D Digital Multimeter For Electronics:
- Frequency, voltage, resistance, current and duty cycle measuring.
- Non-Contact Voltage detection (NCV).
- Auto-ranging.
- Data hold function.
- Diode and continuity testing.
- Auto power off.
- Low battery indication.
Specifications Of Professional Tester Multimeter UNI-T UT 136 D:
- Manufacturer: UNI-T
- Type of meter: digital multimeter
- Measurement: AC current, AC voltage, continuity, DC current, DC voltage, resistance
- Kind of display used: LCD (2000), with a backlit
- DC voltage measuring range: 400m/4/40/400/500V
- DC voltage measuring accuracy: ±(0,8% + 3 digits)
- AC voltage measuring range: 400m/4/40/400/500V
- AC voltage measuring accuracy: ±(1,2% + 5 digits)
- DC current measuring range: 400µ/4000µ/40m/400m/4/10A
- DC current measuring accuracy: ±(1% + 2 digits)
- AC current measuring range: 400µ/4000µ/40m/400m/4/10A
- AC current measuring accuracy: ±(1,5% + 5 digits)
- Resistance measuring range: 400/4k/40k/400k/4M/40MΩ
- Resistance measuring accuracy: ±(1,2% + 3 digits)
- Diode test: yes
- Continuity test: acoustic signal for R<10Ω
- Dimensions: 72x137x35mm
- Weight: 200g
- Power supply: 1 battery 9V 6F22
- Standard equipment: test leads
- Conform to the norm: EN61010 250V CAT II
Package includes:
- 1 x Digital Multimeter UNI-T UT136D
- 2 x Test leads
- 1 x Battery
- 1 x User manual
