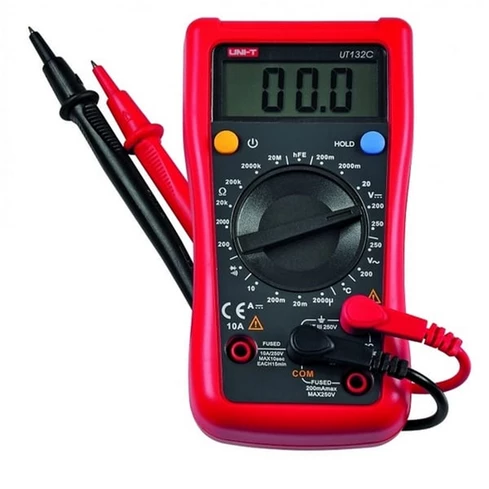

UNI-T UT132 series meter is a 3.5 digit palm-sized digital multimeter with stable performance, and fashionable design. UT132C dc multimeter is safe and reliable manual ranged that can be used for measuring
,
resistance, capacitance,
temperature, diode voltage drop, transistor hFE parameter, circuit continuity, square wave output and so on. Its adapter plug socket of UT-132C meter can conveniently test surface mount devices. This Uni-t cheap multimeter can be used for home, schools, factories, electrical and chemical engineering, and other areas. It is a great tool for circuit maintenance and electrical equipment repair.
Features Of UNI-T UT-132C DMM Meter:
- Measurement functions:
- DC current
- resistance
- temperature
- continuity test
- diode test
Data hold
Low battery indication
Specifications Of UNI-T Mini Multimeter UT 132 C:
- Type of display used: LCD (1999)
- DC voltage measuring range: 200mV/2000mV/20V/200V/600V
- DC voltage measuring accuracy: ±(0,5% + 2 digits)
- AC voltage measuring range: 200/600V
- AC voltage measuring accuracy: ±(1,2% + 3 digits)
- DC current
measuring range: 2000μA/20mA/200mA/10A
- DC current
measuring accuracy: ±(1,0% + 2 digits)
- Resistance measuring range: 0,1...200/2k/20k/200k/2M/20MΩ
- Resistance measuring accuracy: ±(1,2% + 2 digits)
- Temperature measuring range: -40 - 1000 °C
- Temperature measurement accuracy: ±(1% + 3 digits)
- Weight with battery: 206gr
- Power supply: Battery 9V 6F22
- LCD Size: 49mm x 18mm
- Product Color: Red and Grey
- Product Net Weight: 200 g
- Product Size: 72mm×137mm×35mm
Package includes:
- 1 x Multimeter UNI-T UT132C
- 1 x Test lead
- 1 x Temperature probe
- 1 x Battery
- 1 x User manual
