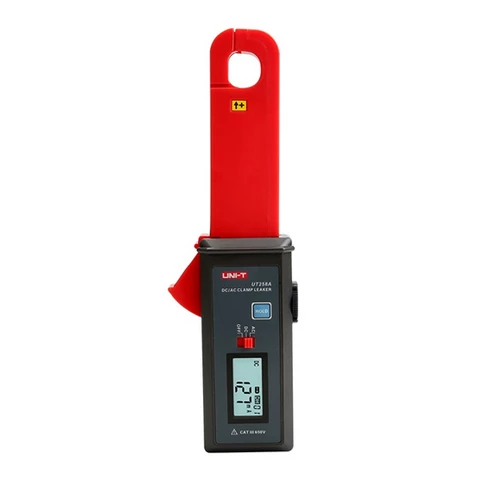

UNI-T UT258A AC/DC Leakage Clamp Meter
UNI-T UT258A AC/DC Leakage Clamp Meter
UNI-T UT258A AC/DC Leakage Clamp Meter
UNI-T UT258A AC/DC Leakage Clamp Meter
Other Meters

UNI-T UT258A AC/DC Leakage Clamp Meter

(2 customer reviews)

Condition: New

Availability: In Stock
Advance Payment Only
  • UNI-T’s UT258A is a 10000-count auto range clamp meter. It measures 0mA~60A AC/DC leakage current with zero mode, φ7mm jaw and RS-232 interface.
  • Applications: It could be widely applied in electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.

SKU:TTH_TCBOX88

Ask Price
Quantity
Add to cart

Features of UNI-T UT258A AC/DC Leakage Clamp Meter:

UT258A is well designed for on-line measurement of DC/AC leakage current and current below 600V, which adopts latest CT and digital integration technology. Slender clamp is very suitable for places full of concentrated cables (such as, electric power metering system, high-speed rail system, automobile circuit maintenance and so on). Non-contact measurement ensures operation safety. The meter has mini shape with high accuracy, stable performance and perfect functions.

Technical Specifications of UNI-T UT258A AC/DC Leakage Clamp Meter:

General Functions Range Accuracy
Type   UT258A
Current (A) 0mA~60.0A AC/DC ±(2%+5)
Resolution 1mA AC/DC
Frequency Response AC: 45HZ~200HZ
Special Functions
Display Mode 4-bit LCD display
Jaw Size φ7mm (max wires O.D.)
Auto Range
RS-232 Data Transmission
Data Storage   99 groups
Zero Adjustment Press ZERO to return to zero, remove residual magnetism induction, and then clamp the wires to be tested.
Data Hold
Line Voltage not beyond 600V
Auto Power Off 5 min
Low Battery Indication Indicates low battery when the voltage is 7.2
Sampling Rate About 2 sec per time
Working Current 10mA
General Characteristics
Power Supply Zinc-manganese battery 6F22 9V
Product Color Red and grey
Product Weight 180g (with batteries)
Product Size 168mm×65mm×34mm
Standard Accessories Batteries, monitoring software, RS232 cable
Standard Package Gift box, user manual, toolbox
Standard Package Quantity 40pcs
Standard Package Size 540X365X290mm
Standard Package Gross Weight 20kg
