Description:

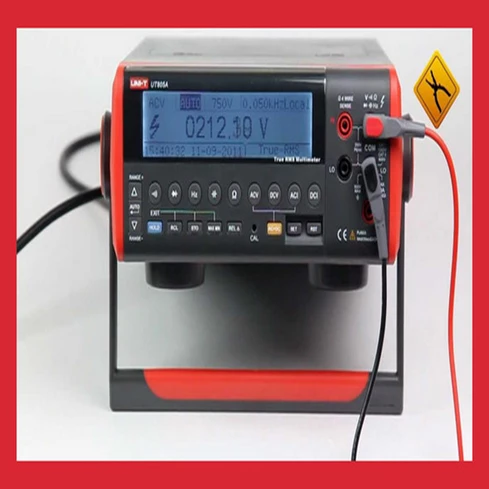

UNI-T UT805A Bechtop Digital Multimeter is now also avaible in Pakistan.
Features:
- Auto range; Bandwidth (100kHz )
- Diode; Continuity buzzer; True RMS
- Data hold; Relative measurement
- MAX/MIN; Data recall; RS-232
- Voltage and current: AC+DC measurement
- 200000-count auto range/TRMS
- 256 x 64 pixels dot-matrix LCD
- High accuracy up to ±(0.015%+3) for DC voltage
Specifications:
Specifications Range Best Accuracy
Model UT805A
DC voltage (V) 1000V ±(0.015%+3)
AC voltage (V) 750V ±(0.2%+100)
DC current (A) 10A ±(0.03%+10)
AC current (A) 10A ±(0.3%+100)
Resistance (Ω) 20MΩ ±(0.02%+6)
Capacitance (F) 6mF ±(2%+5)
Frequency (Hz) 10Hz~60MHz ±(0.1%+3)
Features
Display count 200000
Data storage 100
USB interface √
LCD backlight √
Dot-matrix LCD 256 × 64 pixels √
Input protection √
General Characteristics
Power AC 220V/50Hz
Display 128mm x 28mm
Product color White and grey
Product net weight 3.2kg
Product size 300mm x 245mm x 105mm
Standard accessories Test lead, multi-purpose socket, AC 220V power cord, software CD, RS-232 interface cable, USB interface cable, alligator clip, probe
Standard individual packing Carton box, English manual
Standard quantity per carton 4pcs
Standard carton measurement 685mm x 450mm x 315mm
Package includes:
1xUNI-T UT805A Bechtop Digital Multimeter
