SKU:TTH_TCBOX88

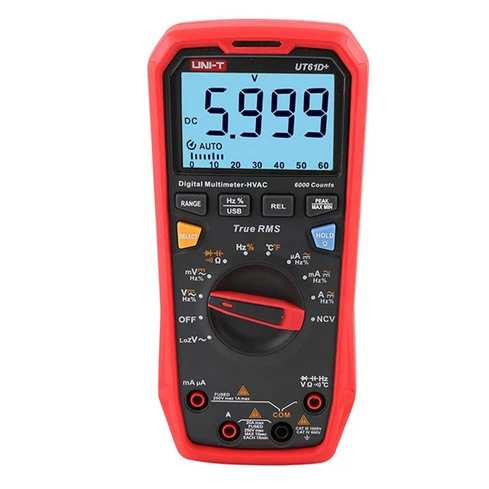

Specifications | Range | UT61D+ |
Safety ratings | CAT III 1000V/CAT IV 600V | |
AC voltage (V) | 1000V | ±(1%+3) |
DC voltage (V) | 1000V | ±(0.5%+3) |
AC current (A) | 20A | ±(1.2%+5) |
DC current (A) | 20A | ±(1%+2) |
Resistance (Ω) | 60MΩ | ±(1%+2) |
Capacitance (F) | 60mF | ±(3%+5) |
Frequency (Hz) | 10MHz | ±(0.1%+4) |
Duty cycle (%) | 0.1%~99.9% | ±(2%+5) |
Temperature (℃/℉) | -40℃~1000℃ | ±(1%+3) |
-40℉~1832℉ | ±(1%+6) | |
Display count | 6000 | |
Bandwidth (Hz) | 40Hz~1kHz | |
LoZ ACV | √ | |
Peak Hold | √ | |
Analog bar | 31 | |
General Characteristics | ||
Power | 1.5V battery (R03) x 4 | |
Product net weight | 350g | |
Product size | 190mm x 90mm x 50mm | |
Standard accessories | Battery, gold plated test leads, USB cable, temperature probe, English manual | |
Standard individual packing | Gift box, cloth bag | |
Standard quantity per carton | 20pcs | |
Standard carton measurement | 480mm x 370mm x 365mm | |
Standard carton gross weight | 15.2kg | |
Optional accessories | Bluetooth/APP |
