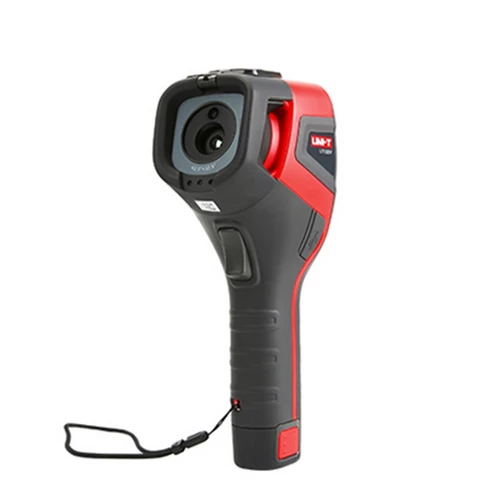

UNI-T UTi320V Thermal Image
UNI-T UTi320V Thermal Image
UNI-T UTi320V Thermal Image
UNI-T UTi320V Thermal Image
Other Meters

UNI-T UTi320V Thermal Image

(2 customer reviews)

Condition: New

Availability: In Stock
Advance Payment Only
  • 3.5-inch TFT LCD screen
  • 50Hz high image frequency
  • Image blending
  • High/low temperature tracking
  • Supports English, German, and Russian

SKU:TTH_TCBOX88

Ask Price
Quantity
Add to cart

Technical Specifications of UTi320V Thermal Image:

Specifications
Model UTi320V
Temperature range  -20~350℃
 -4℉~662℉
Temperature accuracy ±2℃ or ±2% (whichever is greater)
Temperature resolution 0.1℃/0.18℉
Thermal resolution 320×240
Temperature coefficient ± 0.1/℃ or ± 0.1%/℃ (whichever is greater)
Visible light resolution 640×480
Emissivity Adjustable (0.01-1.00), 0.98 in default
Reflectivity Reflectivity correction (adjustable background temperature)
Palettes White hot, iron red, arctic, rainbow 2, hot iron, rainbow 1
High/low temperature tracking
High/low temperature alarm
Image blending/Picture in picture
WIFI mode Connects to PC software and moblie phone App
Lens 7mm
Focus Focus free
FOV 42.5°×32.5°
NETD ≤60mK
Image frequency 50Hz
Digital zoom ×2, ×4
General Characteristics
Power 7.4V 2300mAh Li-ion battery
Display 3.5-inches TFT LCD
Product color Red and grey
Product net weight 1.8kg (Package)
Product size 258mm x 98mm x 90mm
Standard accessories Li-on battery x 2, USB power supply with multi plugs,
wrist strap, adaptor×5, SD card, USB cable, PC software CD
Standard individual packing Gift box, tool box, English manual
Standard quantity per carton 1pcs
Standard carton measurement 410mm x 265mm x 180mm
Standard carton gross weight 2.2kg
