Sonel LKZ-720 Wires and Pipe Locator
Other Meters

Sonel LKZ-720 Wires and Pipe Locator On sale

(2 customer reviews)

Condition: New

Availability: In Stock
Advance Payment Only

SKU:TTH_TCBOX881

Rs. 144500 Rs. 166175

Quantity
Add to cart

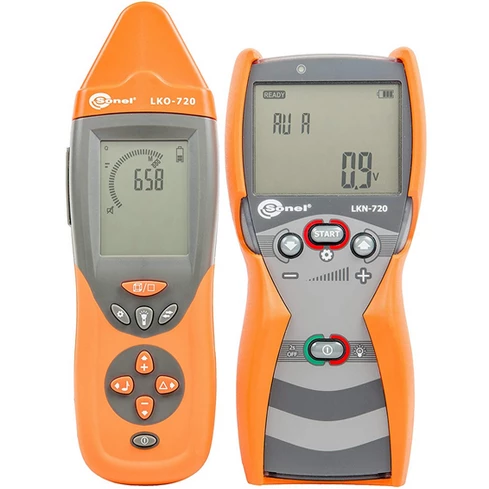

The Sonel LKZ-720 cable and wire locator is a device consisting of the LKN-720 transmitter and the LKO-720 receiver. This instrument is dedicated to finding cables and other underground infrastructures. The LKZ-720 allows the location of both metallic objects (cables) and non-conductive objects (PVC pipes, concrete, etc.). The locator is mainly dedicated to use in the energy and installation industry, among others.

Features of Sonel LKZ-720 cable and wire locator:

  • Detection of wires and cables (live or not)
  • Tracing underground cables
  • Tracing conductive water and heating pipelines
  • Flow and accurate locating the object
  • Phase detection mode
  • Operation in wide range of rated voltage, up to 500 V RMS
  • Five modes of wire tracer operation - voltage, current, current-voltage, power and clamp
  • Additional accessories enable precise localization - such as contact or non-contact probes and measurement clamp
  • The function 3D in the receiver - detecting the direction of current
  • Receiver operation with four transmitters at the same time to locate interruptions or distinguish wires
  • A LED bright torch • headphone socket in receiver
  • Screens backlight for work in dark
  • Transmission battery status and settings of the transmitter to the receiver
  • Measurement of voltage at the object to 500 V RMS
  • Three levels of transmitter amplification
  • Automatic or manual selection of transmitter operation modes
  • Software upgrade via USB

Additional areas of use:

  • Detection of breaks in cables and wires
  • Locating short circuits between leads
  • Tracing shielded cables
  • Tracing cables in metal ducts
  • Tracing underground cables
  • Tracing conductive water and heating pipelines

Technical Specifications

Parameter Description
insulation type double, acc. to EN 61010-1
transmitter measurement category III 600 V acc. to EN 61010-1
transmitter ingress protection rating acc. to EN 60529 IP67
receiver ingress protection rating acc. to EN 60529 IP40
transmitter power supply 4 x AA alkaline batteries or 4 x Ni-MH rechargeable batteries
maximum transmitter operating voltage 500 V RMS
maximum depth of the analysed object (“I” mode) 2 m
receiver power supply 9 V 6LR61 alkaline battery
operating temperature -10°C...+50°C
