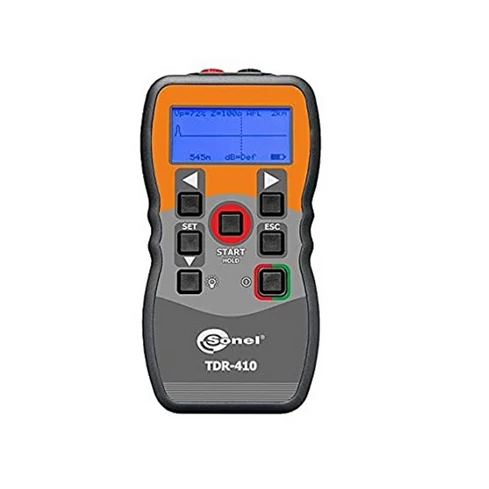

Name: Sonel TDR-410 Cable Fault Locator
Brand: SONEL
SKU: TTH_TCBOX87
Availability: InStock
Rating: 5 (2 reviews)

Description of Sonel TDR-410 Cable Fault Locator:

Location damaged power cables.
Fault location copper telecom cables.
Coaxial cable fault location.
Fault location wiring infrastructure.
Detection of breaks, short circuits, damage caused by dampness and other changes in impedance of the cable.
Graphic depiction of damage the cable with automatic indication the distance to fault on the screen.

Sensitivity	Min 3 pixel return at 4km / 14000 ft. on 0.6 mm diameter, PE, TP
Range Selection	Manual or Auto
Resolution	Approx 1% of range
Battery Life	30 hours continuous scanning
Storage temperature	-20º +70° C / -4 º to 158 ºF
Accuracy	1% of selected range
Cable Length	4 m / 14 ft
Meter Range	7, 15, 30, 60, 120, 250, 500, 1km, 2km, 3km, 4km
Operating Temperature	-10º to 50ºC / 14 º to 122 ºF
Scan Rate	2 scans per second or scan held, pre-set for each range scale
Weight	350 g / 12 oz
Dimensions	165 x 90 x 37 mm / 6.5 x 3.5 x 1.5 ins
Power Supply	4 x 1.5 AA Alkaline cells, low battery indicator

automatic or manual mode:
- the automatic fault location (AFL),
- mode with manual range selection and sensitivity,
- single measurement triggered manually or scanning continuous,
11 available ranges from 7 m to 4000 m selected in manual mode or matched automatically,
maximum length of cable up to 4000 m one end of the cable,
"Dead zone" measure limited to 0.5 m,
2.5 "LCD screen with backlight,
scan automatically or manually trigger,
sensitivity set manually or automatically adjusted,
adjustable impedance matching,
propagation coefficient adjustment 1% to 99%,
waterproof and resistant to mechanical housing.
small size and weight.
economical power system - 30 hours of continuously scan on one battery set.
