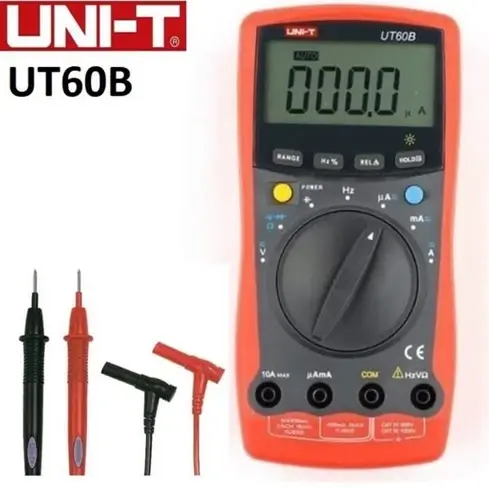

Uni-Trend UT60B Auto-ranging Multimeter with Both AC/DC Current 3 3/4 Digits for Higher accuracy. Palm-size UNI-T digital Multimeter is able to measure high voltage, amperage, resistance, capacitance, and frequency. The Portable DMM UT60B mostly suits those with some familiarity with multimeters as it is a manual ranging meter. One of the most apparent features of Pocket-size Multitester is its ability to measure 10A for AC and DC current. Handheld UNI-T Multitester has a
Back-lit LCD screen with a maximum reading of 3,999. The enclosure structure design Of Professional Digital Multimeter ut60b adopted advanced "co-injection" technique in order to provide sufficient insulation
Features Of Pocket Size Modern Multimeter UT60B:
- Analog bar graph
- Transistor measurement
- Auto range
- Fully featured AC/DC DMM with 10A on Both AC and DC Current
- Back-lit LCD screen with a maximum reading of 3,999
- AC/DC Volts, Amps, Resistance, Capacitance, Diode, Continuity & Frequency
- Diode test and buzzer continuity
- MAX/MIN/REL measurement mode
Specifications Of Handheld professional Multitester Uni-t ut60b:
- Power: 9VBattery (6F22)
- LCD Size: 63×31mm
- Max. Display: 3999
- Product Color: Red and Grey
- Product size: 177mmx85mmx40mm
- DC Voltage(V):
- Range:400mV/4V/40V/400V/1000V
- Accuracy: ±(0.8%+1)
- AC Voltage(V):
- Range:4V/40V/400V/750V
- Accuracy: ±(1%+5)
- DC Current (A):
- Range:40μA/4mA/40mA/400mA/10A
- Accuracy: ±(1%+2)
- AC Current (A):
- Range:4mA/400mA/10A
- Accuracy: ±(1.5%+5)
- Resistance(Ω):
- Range:400Ω/4KΩ/40KΩ/4MΩ/40MΩ/400MΩ
- Accuracy: ±(1%+2)
- Capacitance (F):
- Range:40nF/400nF/4uF/40uF/100Μf
- Accuracy: ±(3%+5)
- Frequency (Hz) :
- Range: 10Hz-10MHz
- Accuracy: ±(0.1%+3)
Operating Manual
Package includes:
- 1x UNI-T UT60B Digital Multimeter
