The Meter uses large scale of integrated circuit with double integrated A/D converter as its core.
Can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diodes and Continuity
Has Relative Mode, Data Hold, Full Icon Display, Duty Cycle and Sleep Mode features.
Specifications:
Specifications Range Best Accuracy
Modle UT10A
DC Voltage 400mV/4V/40V/300V ±(0.8%+1)
AC Voltage 4V/40V/300V ±(1.2%+3)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1%+2)
Capacitance 4nF/40nF/400nF/4µF/40µF/200µF ±(4%+3)
Frequency 10Hz/100kHz ±(0.5%+3)
Features
Auto Ranging √
Duty Cycle 0.1%~99.9% √
Diode √
Continuity Buzzer √
Relative Mode √
Data Hold √
Full Icon Display √
Sleep Mode √
Low Battery Display √
Input Impedance for
DC Voltage Measurement Around 10MΩ √
Max. Display 3999 √
General Characteristics
Power 3V Button Battery (CR2032) (INCLUDED)
LCD Size 43 x 22mm
Product Colour Red and Grey
Product Net Weight 62g
Product Size 58 x 108 x 12mm
Packing Included:

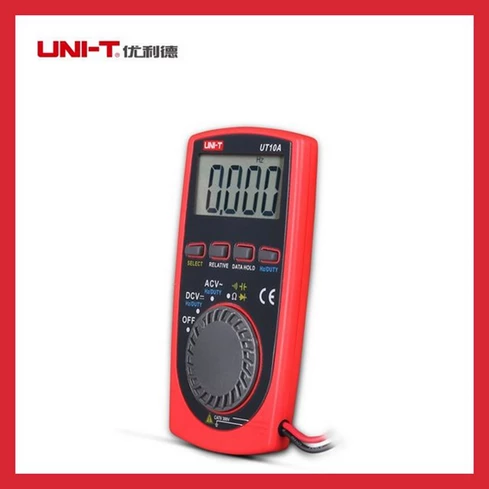

1 x UNI-T UT10A Digital LCD Palm Size Multimeter
