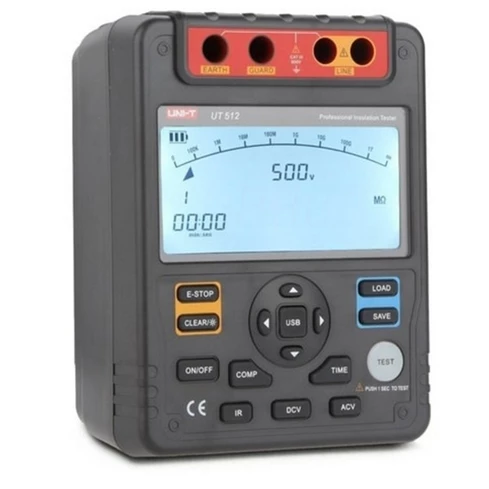

UNI T Insulation Resistance Tester UT512
UNI T Insulation Resistance Tester UT512
UNI T Insulation Resistance Tester UT512
UNI T Insulation Resistance Tester UT512
UNI T Insulation Resistance Tester UT512
UNI T Insulation Resistance Tester UT512
UNI T Insulation Resistance Tester UT512
Other Meters

UNI T Insulation Resistance Tester UT512

(2 customer reviews)

Condition: New

Availability: In Stock
Advance Payment Only

UT510 series (UT511, UT512, UT513A and UT516B) testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.

SKU:TTH_TMD1,Th6,KRT

Rs. 25650 Rs. 29498

Quantity
Add to cart

UNI T Insulation Resistance Tester UT512 is a kind of intelligent insulation tester. The UT-512 insulation resistance meter design takes microcomputer technology design as the core and combines the large scale integrated circuit with digit circuit. This digital cable insulation tester is equipped with strong measuring software and data processing software. It is applied to the parameter measurement of insulation resistance, voltage and low resistance. This digital megohmmeter has stable performance and simple operation. This voltmeter is applicable to on-site measurement and repair of the electrical equipment and charging line. This electrical insulation checker is the ideal tool for maintaining electrical equipment. UT512 digital insulation tester is also used for smelting, communication, manufacture, fossil oil, national defence, electricity, chemical industry and circuit.

Features Of UNI-T UT512 Insulation Resistance Tester Meter:

  • Large 9999 display with 30-segment analogue bar graph.
  • PI/DAR measurements.
  • Comparison, upper and lower limit functions.
  • Continuous measurement mode.
  • Auto power off.
  • 18-group data storage.
  • Backlight.
  • Auto current discharge and high-voltage output alarm.
  • Power adapter.
  • Time measurement mode, auto measure within 15 minutes.
  • USB interface and PC software.
  • Low battery and over range indications.

Specifications Of Insulation Resistance Test Megger UT-512:

  1. Insulation Resistance: 0.5MOhm ~100GOhm
  2. Insulation Resistance Best Accuracy: +/- (3%+5)
  3. Testing Voltage: 500V / 1000V / 1500V / 2500V
  4. Testing Voltage Best Accuracy: 0 ~ 20%
  5. DC Voltage: 600V
  6. DC Voltage Best Accuracy: +/- (2%+5)
  7. AC Voltage: 600V
  8. AC Voltage Best Accuracy: +/- (2%+5)
  9. Auto Ranging: Yes
  10. Short Circuit Current: < 1.8mA
  11. Data Logging: 18
  12. Sleep Mode: Yes
  13. Polarization Index (PI): Yes
  14. Dielectric Absorption (DAR): Yes
  15. Timer Around: 15 minutes
  16. Comparison Measurement: Yes
  17. Battery Display: Yes
  18. White Display Backlight: Yes
  19. Over Range and High: Yes
  20. Voltage Warning: Yes
  21. USB Interface: Yes
  22. Max. Display: 9999 (123 x 58mm)
  23. Analogue Bar Graph: Yes
  24. Power: 1.5V Alkaline Battery(LR14)×8
  25. Product Size: 202×155×94 mm
  26. Product Weight: 1.8 kg

Package Includes:

  • 1 x Insulation tester UNI-T UT512
  • 1 x One plug test lead (black)
  • 1 x One plug test lead (green)
  • 1 x Two plugs test lead (red)
  • 1 x Toolbox
  • 1 x USB interface
  • 1 x Software CD
  • 1 x User manual
