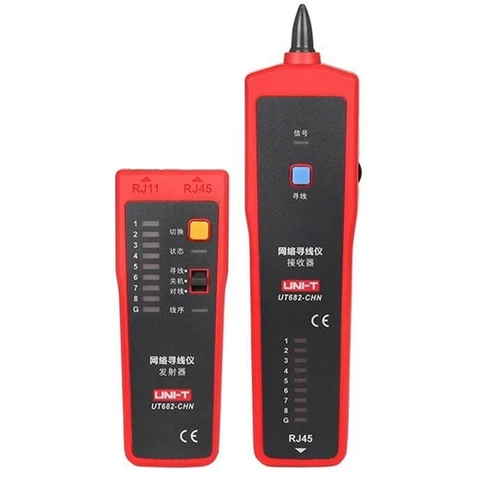

UNI T Wire Tracker Cable Tester UT682 consists of transmitter and receiver. This UT-682 line finder tracer has functions like telephone wire tracking, network wire tracking, cable wire tracking, network wire check, etc. This telephone phone wire finder has fast and accurate measurement. The UT682 power cable wire tracer is an ideal tool for personnel to install and maintain low current systems such as communication wires and integrated circuits.
Features Of UNI-T UT682 Linefinder Adapter Cable Tester Machine:
- Telephone/ethernet/power cable tracking
- DC level test can check voltage level and polarity
- Ethernet cable wiring sequence verification
- Fast open/short circuit test
- Volume adjustment
- Headset connection for noisy environment
- Dual measurement cycle mode
- Low battery indication
Specifications Of UNI-T UT-682 RJ11 RJ45 Wire Tracker Line Finder Telephone Wire Tracker Network Cable Tracer:
- Wire tracking (LAN cable\telephone line\coaxial cable\electric wire): Yes
- Live network switch tracking: Yes
- Indication light for signal strength: Yes
- Telephone lines tracking distance: ≥3000m
- Unshielded cables tracking distance: ≥320m
- Shielded cables tracking distance: ≥320m
- Video cable tracking distance: ≥100m
- Open and short circuit test: Yes
- Polarity indication for telephone lines (DCV function, range: ±(5V~52V)): Yes
- Telephone lines and LAN cables distinction (jacks distinction): Yes
- Broken point finding (totally open circuit): Yes
- The voltage of transmitter output signal: ≥12V Peak-Peak
- Transmitter audio modes: Fast/slow
- Transmitter low battery indication (Line sequence indication light is on.): Around ≤6.6V
- Receiver low battery indication (Power indication light flashes.): Around ≤6.6V
- Transmitter power supply: 9V (Layer-built battery)
- Max transmitter working current: 25mA
- Headphone jack for receiver: Yes
- Receiver power supply: 9V (Layer-built battery)
- Max receiver standby current (when pressing 'Press to test' key and no wire is found): Around 10mA
- Max receiver operating current (when pressing 'Press to test' key, some wire is found and the volume is adjusted to the maximum): ＜40mA (AC, RMS)
- Line sequence measurement: 9 LED (LED1~LED8, LED_G) indication lights
- Line sequence measuring speed (fast and slow selectable): Yes
- LAN cable: Shielded/unshielded indication: Yes
- Transmitter input voltage protection: 52V DC
- Operating temperature: -10~50℃
- Storage temperature: -10~50℃
- Operating humidity: 20~75%RH
- Storage humidity: 10~90%RH
- Altitude: ≤2000m
- Product colour: Red and grey
- Product weight transmitter: 125g
- Product weight receiver: 153g
- Product size transmitter: 125 X 48 X 28mm; Receiver: 195 X 48 X 30mm
Telephone Line Tracking Function:
- Connect the telephone line head into the transmitter’s RJ11 interface;
- Press the transmitter functional select switch to the “TEST” position. Line tracking indicator “Status” will flask, which indicates that the transmitter works properly;
- Hold down the receiver “Press to test” button and look for the target cable with receiver probe.
- During the testing, light press “Switch” button to switch between single and double audio test pattern.
Network Line Tracking Function:
- The network line with a crystal head into the transmitter RJ45 interface;
- Press the transmitter functional select switch to the “TEST” position, Line tracking indicator “Status” will flash, which indicates that the transmitter works properly;
- Hold down the receiver “Press to test” button and look for the target cable with receiver probe.
- During the testing, light press “Switch” button to switch between single and double audio test pattern.
Power Cable Line Tracking Function (Power cable must not be powered):
- Connecting the transmitter with the metal cable using alligator clip adapter wiring;
- Adjust the transmitter functional select switch to the “TEST” position, line tracking indicator “Status” will flash, which indicates that the transmitter works properly;
- Hold down the receiver “Press to test” button and look for the target cable with receiver probe.
- During the testing, light press “Switch” button to switch between single and double audio test pattern.
Package Includes:
- 1 x UNI-T UT682 Transmitter
- 1 x UNI-T UT682 Receiver
- 1 x RJ11 Adapter Cable
- 1 x RJ45 Adapter Cable
- 1 x Crocodile Clip Adapter Cable
- 1 x Cloth Bag
- 1 x English User Manual
