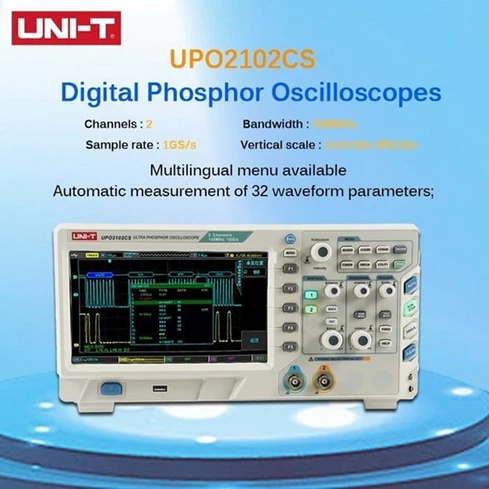

UNI T UPO2102CS Digital Oscilloscope 2 Channel DSO 100MHz
UNI T UPO2102CS Digital Oscilloscope 2 Channel DSO 100MHz
UNI T UPO2102CS Digital Oscilloscope 2 Channel DSO 100MHz
UNI T UPO2102CS Digital Oscilloscope 2 Channel DSO 100MHz
Oscilloscope

UNI T UPO2102CS Digital Oscilloscope 2 Channel DSO 100MHz

Condition: New

Availability: In Stock
Advance Payment Only

SKU:TTH_TMD1,Th6,KRT

Ask Price
Quantity
Add to cart

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. UNI-T UPO2102CS digital oscilloscope is a 2 channel 100MHz bandwidth high-performance device. It has a sampling rate of 1GS/s. Digital Storage CRO is ergonomic, lightweight, universal instruments designed for engineers. Sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment

Features Of UNI-T UPO-2102CS Oscilloscope DSO Scopemeter:

  • sample Rate up to 1GS/s
  • channels 2
  • Bandwidth 100MHz
  • Memory Depth 32Mpts(Standard)
  • Waveform Capture Rate up to 50,000wfms/s
  • With 256 level intensity grading display
  • Up to 65,000 frames for Waveform Record, Replay
  • Support serial bus trigger and decoding
  • 8 inches, TFT LCD,WVGA(800*480)
  • Interface:USB Host, USB Device, LAN, VGA, AUX OUT, 10MHz input/output.

Specifications Of 2 Channel Digital Storage Oscilloscope:

  1. Channels: 2
  2. Bandwidth: 100MHZ
  3. Sample Rate: 1GS/s
  4. Rise Time: ≤7ns
  5. Memory Depth: 28 kpts
  6. Waveform Acquisition Rate: ≥50000wfms/s
  7. Vertical Sensitivity: 1mV/div-20V/div (1MΩ)
  8. Time-base Range: 5ns/div-50s/div
  9. Storage: Setup, Wave, Bitmap
  10. Trigger Modes: Edge, pulse width, video (UTD2025CL), alternate
  11. Interface: USB OTG,Pass/Fail
  12. Power: 100-240VAC, 40-440Hz
  13. LCD Size: 8 inches, 800x480
  14. Color: White and Grey
  15. Dimension: 336x164x108mm

Typical applications Of UPO2102CS :

  1. Serial data analysis
  2. Jitter analysis
  3. Data storage device testing
  4. Electric vehicle and electronics equipment design
  5. Evaluating the frequency response of sound equipment
  6. Troubleshooting automotive engines
  7. Electronics technician repair and maintenance.

Package Include:

  • 1x Oscilloscope
  • 2x Probe (1×,10× switchable)
  • 1x power cord
  • 1x USB cable
