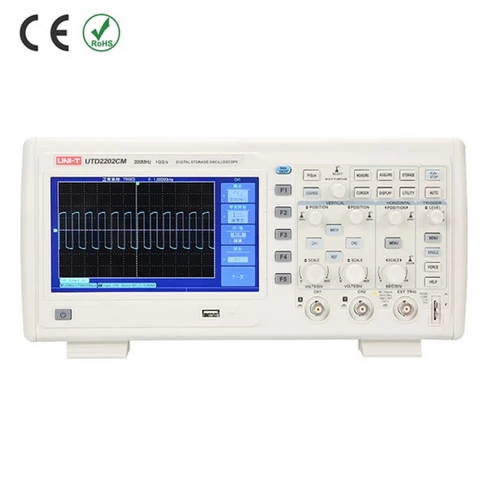

Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2202CM
Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2202CM
Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2202CM
Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2202CM
Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2202CM
Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2202CM
Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2202CM
Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2202CM
Oscilloscope

Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2202CM

Condition: New

Availability: In Stock
Advance Payment Only
  • Display: 7 Inches TFT LCD, WVGA (800x480)
  • Product Color: White and Grey
  • Product Net Weight: 2.9Kg
  • Product Size (W x H x D): 332mm x 147mm x 170mm

SKU:TTH_TTDig

Ask Price
Quantity
Add to cart

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. UNI-T UTD2202CM digital oscilloscope is a 2 channel 200MHz bandwidth high-performance device. It has a sampling rate of 1GS/s. Modern DSO has a Button lock: can lock or unlock any button on the device, and code can be set to avoid random alternation. It has 34 kinds of auto measurementsDigital Storage CRO is ergonomic, lightweight, universal instruments designed for engineers. Sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment. 200MHz Scopemeter has many applications in Electric vehicle and electronics equipment designand many more.

Features Of UNI-T UTD2202CM Modern Digital Scopemeter:

  • 2 channels,1GS/s sample rate
  • 200MHz bandwidth, 16Mpts maximum memory depth
  • Waveform acquisition rate is up to 150,000wfms/s
  • Vertical sensitivity: 2mV/div~5V/div
  • Time-based range: 2ns/div~50s/div
  • Trigger modes: edge, pulse, runt, video, slope, alternate
  • Customized AUTO, fast captures the signals
  • Supports Y-T and X-Y mode at the same time, can observe Lissajous waveform
  • 34 kinds of auto measurements
  • Optional LA module
  • Standard interfaces: USB Host,USBDevice,Pass/Fail
  • 7-inch TFT LCD,WVGA (800*480)

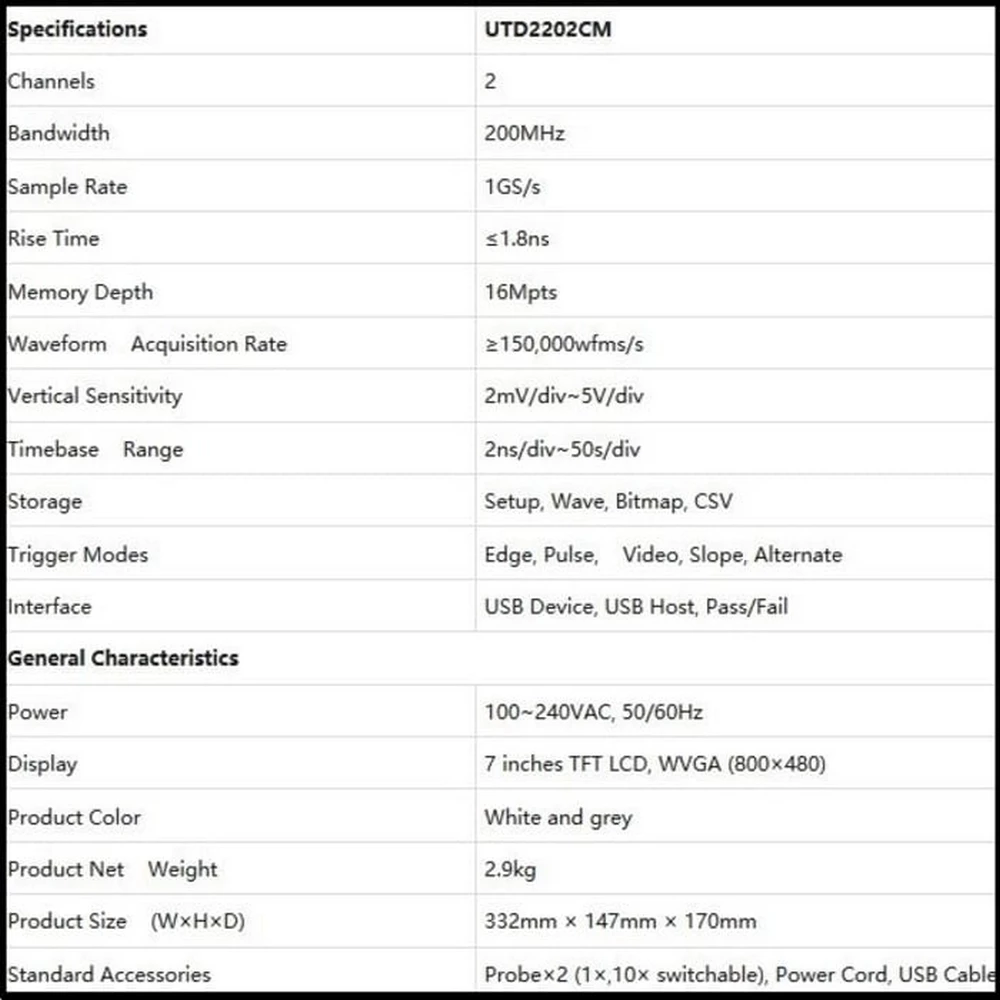

Specifications Of Professional Digital Storage 200MHz Oscilloscope DSO:

Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2202CM

Typical applications Of UTD2202CM :

  1. Serial data analysis
  2. Jitter analysis
  3. Data storage device testing
  4. Electric vehicle and electronics equipment design
  5. Evaluating the frequency response of sound equipment
  6. Troubleshooting automotive engines
  7. Electronics technician repair and maintenance.

Package Include:

  • 1x Oscilloscope
  • 2x Probe (1×,10× switchable)
  • 1x power cord
  • 1x USB cable

Best Online Shopping Website for Digital storage Oscilloscope UNI T UTD2202CM 2 channel DSO data analysis Oscilloscope in cheap price in Karachi Lahore Islamabad Rawalpindi Sukkur Peshawar Multan Quetta Faisalabad and all over Pakistan
