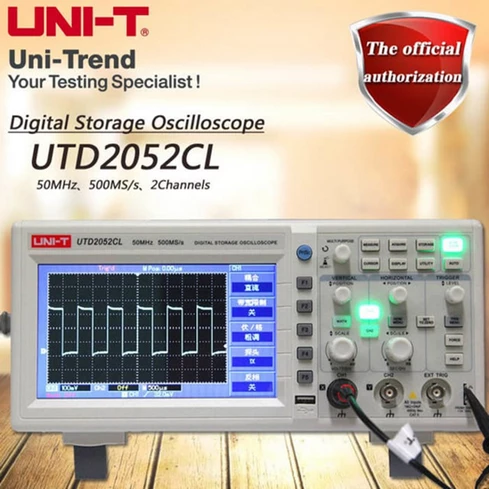

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time.UTD2052C Oscilloscope is a two-channel portable device with 7-inch display 50MHz bandwidth and 500MS/s sampling rate. Digital Storage CRO is ergonomic, lightweight, universal instruments designed for engineers. Sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment
Features Of UNI-T UTD2052CL Best Sampling Oscilloscope:
- The dual analog channels width range of 1mV/div~20V/div.
- 7 inches widescreen LCD displays.
- Special Print Screen Feature.
- Supports plug-and-play USB storage devices. Communication with and remote control of the computer through the USB device.
- USB drive system software upgrade.
- Storage of waveforms setups and interfaces waveforms and setups reproduction.
- Automatic measurement of 28 waveform parameters.
- Unique waveform recording and replay function.
- Multilingual menu displays.
Specifications Of 2 Channel Oscilloscope DSO Scopemeter:
- Channels: 2
- Bandwidth: 50MHZ
- Sample Rate: 500MS/s
- Rise Time: ≤7ns
- Memory Depth: 25 kpts
- Waveform Acquisition Rate: ≥2000wfms/s
- Vertical Sensitivity: 1mV/div~20V/div
- Time-base Range: 10ns/div~50s/div
- Storage: Setup, Wave, Bitmap
- Trigger Modes: Edge, pulse width, video (UTD2025CL), alternate
- Interface: USB OTG,Pass/Fail
- Power: 100-240VAC, 40-440Hz
- LCD Size: 7 Inches 64K Color TFT LCD, 400×240
- Color: White and Grey
- Dimension: 306mm ×147mm × 122mm
Package Include:
- 1x Oscilloscope
- 2x Probe (1×,10× switchable)
- 1x power cord
- 1x USB cable
