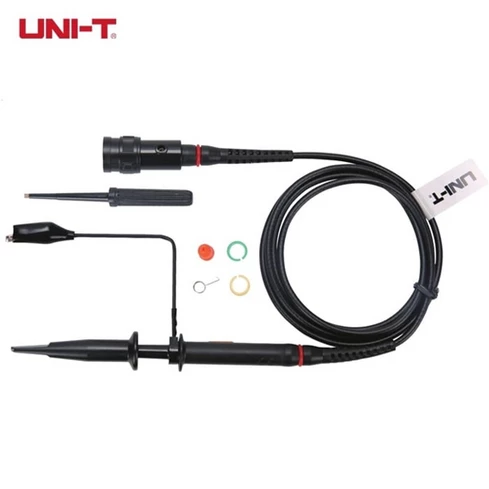

UNI T 200MHz Oscilloscope Passive Probe UT P05

UNI-T 200MHz oscilloscope probe UT-P05 is a device that makes a physical and electrical connection between a test point or signal source and an oscilloscope. This UTP05 passive probe lead is the most commonly used probes for taking general-purpose measurements. This best low price probe is constructed using wires, connectors, a housing, and, if required, compensation or attenuation resistors or capacitors.

Features Of UNI-T Best Passive Probe Test Lead 200MHz UTP05:

• This passive probe is good oscilloscope accessories, it is suitable for oscilloscope.
• Stable performance and not easy to break.
• This can provide a professional and accurate measurement.
• Widely used, it can satisfy most peoples.
• A good helper for instrument engineer.

Specifications Of High-Quality Oscilloscope Probe UNI-T UT-P05:

1. Passive Probe: (1:1/10:1）
2. Bandwidth: 200MHz
3. Input Resistance: 1×:1MΩ±2%，10×:10MΩ±2%
4. Input Capacitance: 1×:70pF～120pF，10×:14pF～18pF
5. Compensation Range: 8pF～ 35pF
6. Operating Voltage: 1×:300Vp-p，10×:600Vp-p

Package Includes:

• 1 x Oscilloscope Probe 200MHz UNI-T UTP05
