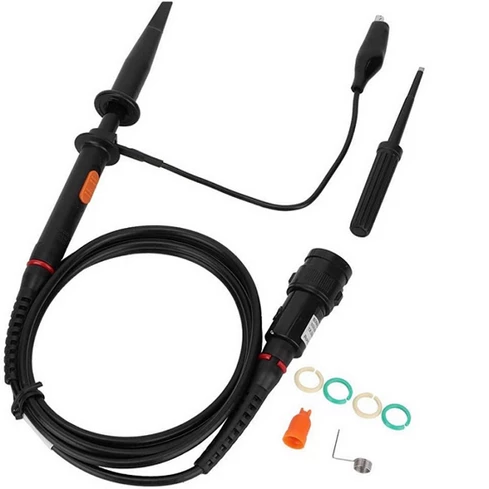

UNI-T UT P03 60Mhz Oscilloscope Probe has 12cm earth wire and
4 pairs of colourized cable markers. UTP-03 scope probe is compatible with domestic/ international digital and analogue oscilloscopes in relevant frequency. UTP 03 best Oscilloscope lead has passed the CE Attestation of the European Community. This best oscilloscope is manufactured with high-quality electronic components. This oscilloscope multimeter can be perfectly adapted to the corresponding type of oscilloscope.
Features Of 60Mhz Oscilloscope Passive Probe UT-P03:
- Attenuation ratio: 1× and 10× optional.
- Portable design according to ergonomics.
- Integral injection moulding makes the usage more flexible and the oscillograph able to adapt more testing situations.
- Safety standards: it has passed the CE Attestation of the European Community.
- Compatible with domestic and international digital and analogue oscilloscopes in relevant frequency.
- Measurement in intermediate and low-frequency signals.
- Accessories included by PP series passive voltage rapier.
- Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
- Contractive-type acuminate hook.
- 12cm earth wire with an alligator clip.
- 4 pairs of colourized cable markers.
- Locating sleeve adapts to IC testing.
- Double-nip wire.
Specifications Of Best Portable Oscilloscope Current Probe UTP03:
- Model: UT-P03
- Passive probe: 1:1/10:1
- Bandwidth: 60MHz
- Input resistance: 1x: 1MΩ±2%, 10x: 10MΩ±2%
- Input capacitance: 1x: 100pF~150pF, 10x: 18.5pF~22.5pF
- Compensation range: 8pF~35pF
- Working voltage: 1x: 300Vp-p, 10x: 600Vp-p
- Weight: 115g / 4.1oz
Package Includes:
- 1 x UNI T 60Mhz Scope Probe Lead Oscilloscope UTP03
