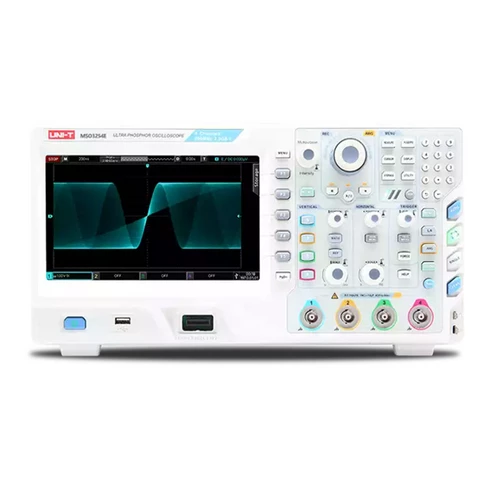

UNI-T MSO3154E 150MHz Mixed Signal 4 Channel Digital Oscilloscope
UNI-T MSO3154E 150MHz Mixed Signal 4 Channel Digital Oscilloscope
UNI-T MSO3154E 150MHz Mixed Signal 4 Channel Digital Oscilloscope
Oscilloscope

UNI-T MSO3154E 150MHz Mixed Signal 4 Channel Digital Oscilloscope

Condition: New

Availability: In Stock
Advance Payment Only

MSO3000E (MSO3152E | MSO3154E | MSO3252E | MSO3254E) Series Mixed Signal Oscilloscope is based on UNI-T's unique Ultra Phosphor technology. A multifunctional, high-performance oscilloscope that is easy to use, with excellent technical specifications, and a perfect combination of many functionalities that help users to quickly complete testing.

SKU:TTH_TCBOX881

Ask Price
Quantity
Add to cart

Technical Specifications of UNI-T MSO3154E Mixed Signal 4 Channel Digital Oscilloscope:

Model

MSO3152E

MSO3154E

MSO3252E

MSO3254E

Analog bandwidth

150MHz

250MHz

Channels

2+16 digital

4+16 digital

2+16 digital

4+ 16digital

Sampling rate (Analog)

2.5GS/s (Single channel), 1.25GS/s (Dual channels)

Sampling rate (Digital)

1.25GS/s (Eight channels), 625MS/s(Sixteen channels)

Memory depth

70Mpts

Waveform capture rate

200,000wfms/s

Time base scale

2ns/div~50s/div (Real-time sampling rate, memory depth display )

Time base scale (digital)

2ns/div~40S/div[Step by 1-2-4 stall]

Input impedance

(1MΩ±1%) II (20pF±3pF)

Input impedance digital

(101kΩ±1%) II (9pF±1pF)

Vertical scale

1mV/div~20 V/div (1 MΩ)

DC gain accuracy

<5mV: ±3%, ≥5mV: ±2%

Waveform record

100,000 frames

Trigger types

Edge, Runt, Window, Nth Edge, Delay, Overtime, Duration, Setup/Hold, Pulse Width, Slop, Video, Code; RS232/UART, I2C, SPI, USB,
CAN, LIN, FlexRay

Bus decode

RS232/UART, I2C, SPI, USB, CAN, LIN, FlexRay

Waveform operations

A+B, A-B, A×B, A/B, FFT, editable advanced and logical operations





Auto measurements

Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, CycRMS, Period, Freq, Rise, Fall, RiseDelay, FallDelay, +Width,
-Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSht, PreSht, Phase, 34 parameters in totaldigital
channel: Freq, Period, +Width, -Width, +Duty, -Duty, RiseDelay A→B,FallDelay A→B, Phase A→B, Phase B→A

Measurement display

5 types

Measurement statistics

Average, Max, Min, standard deviation and number of measurements

Frequency counter

6 bits

Standard interfaces

USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), AWG,UT-M15 logic analyzer probe, VGA





Standard Accessories

USB interface cable

UT-D14

Passive Probe x 2/4 (1 x , 10 x switchable,300MHz,)

UT-P06

Passive Probe x 2/4 (1 x , 10 x switchable,200MHz,)

UT-P05

16CH Logic analyzer probe

UT-15M



16 Digital Channels Mixed Signal Analysis Capability:

MSO3000E not only has 4 analog channels, but also provides 16 digital channels to accurately capture and display digital level signals and bus logic status.

Built-in Dual-Channel 50MHz Signal Generator:

Built-in dual-channel 50MHz arbitrary waveform generator function, integrating oscilloscope, logic analyzer and signal source into one, bringing you a more efficient test experience.

Independent Time Base and Multiple Trigger Functions:

Rich trigger function to meet more test conditions, and the time base of each channel is independently adjustable, which is convenient for users to observe four signals with large frequency differences at the same time.

Longer storage depth:

70Mpts storage depth per channel, while observing four channels of signals at the same time, it can maintain the highest sampling rate for a longer period of time, without losing any waveform changes, and can also analyze waveform details

Document:

MSO3154E Manual
