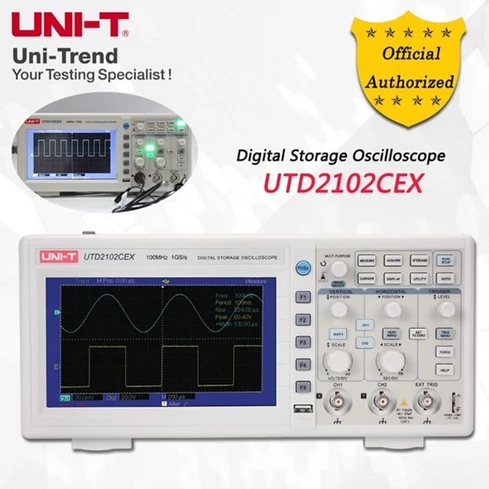

Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2102CEX

A DSO Oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time.UTD2102CEX Oscilloscope is a two-channel portable device with 7 inches 64k Color TFT LCD display 100MHz bandwidth and 1GS/s sampling rate. Digital Storage CRO is an ergonomic, lightweight, universal instrument designed for engineers. Sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment.

Features Of UNI-T UTD2102CEX Digital Storage Sampling Oscilloscope:

• 100MHz bandwidth
• 1GSa/s real-time sampling rate.
• 2 channels.
• 25kpts memory depth.
• 20,000wfms/s waveform acquisition rate.
• 2ns/div~50s/div time-base.
• Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope, and Video.
• Calibration Signal Output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz.
• Input calibration signal only by pressing a button.
• 10Mpts waveform recording.
• 8-inch TFT LCD, WVGA (800×480)
• USB OTG and Pass/Fail interfaces.

Specifications Of 2 Channel Oscilloscope DSO Scopemeter:

Package Include:

• 1x Oscilloscope
• 2x Probe (1×,10× switchable)
• 1x power cord
• 1x USB cable
