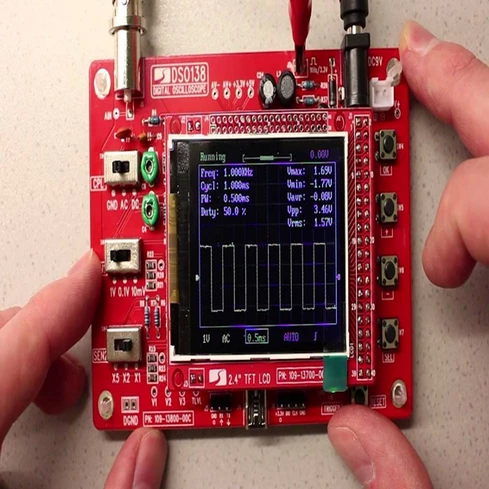

This Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope In Pakistan is a cheap and small size oscilloscope. This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with a 2.4-inch TFT screen. It’s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. This boost converter is a great match for the DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included), make the DSO138 oscilloscope to be a portable oscilloscope for better use.
Features Of DSO138 Oscilloscope:
- This kit uses ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch color TFT display screen, which can be used as the ARM test development board.
- Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
- Adjustable vertical displacement, and with instructions.
- With automatic, regular, and one-shot modes, easy to capture the moment waveform.
- Available rising or falling edge trigger.
- Observable previous trigger waveform (negative delay).
- Can freeze at any time waveform display (the HOLD function).
- Comes 1Hz /3.3V square wave test signal source.
- With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Specifications Of DSO138 Oscilloscope:
- Supply Voltage (V) 9V DC
- Input Impedance (Ω) 1MΩ
- Maximum Real-time Sampling Rate 1Msps
- Sampling Buffer Depth 1024 bytes
- Analog Bandwidth 0-200KHz
- Vertical Sensitivity 10mV / Div – 5V / Div (1-2-5 progressive manner)
- Accuracy 12Bit
- Coupling Modes DC / AC / GND
- The Horizontal Time Base Range 10μs / Div – 50s / Div (1-2-5 progressive manner)
- Length (mm) 118
- Width (mm) 77
- Height (mm) 19
- Weight (gm) 130
- Shipment Dimensions 17 × 12 × 3 cm
Package Includes In DSO138 Oscilloscope:
- 1 x DSO138 DIY Digital Oscilloscope Kit.
- 1 x Probe.
