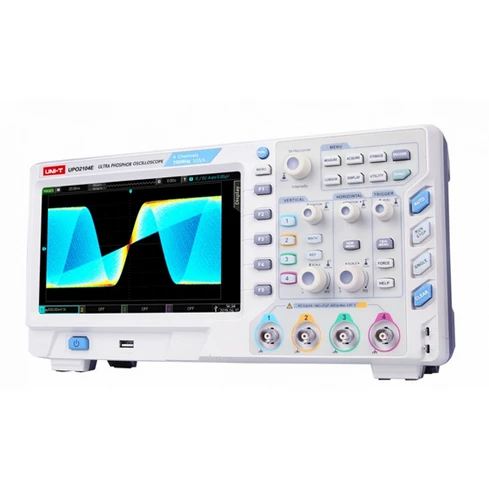

UNI-T UPO2104E 4 Channel Ultra Phosphor Oscilloscope
Oscilloscope

UNI-T UPO2104E 4 Channel Ultra Phosphor Oscilloscope On sale

Condition: New

Availability: In Stock
Advance Payment Only

SKU:TTH_TCBOX83

Rs. 150000 Rs. 0

Quantity
Add to cart

The UNI-T UPO2104E is a 4-channel oscilloscope for high performance and is a direct successor to the UPO2104CS. Compared to its predecessor, a number of specifications have been changed, for example, the 2104E has a memory depth of 56 Mpts and the waveform capture rate has been increased to 80,000 wfms per second. What makes this scope really unique is that it can use a separate time base per channel. Furthermore, the scope has a large number of functions and the trigger options have been drastically expanded.


Features of UNI-T 4 Channel UPO2104E Ultra Phosphor Oscilloscope:

  • Bandwidth: 70MHz, 100MHz
  • 56Mpts (single channel)
  • 83,000wfms/s waveform capture rate
  • 256-level intensity grading display
  • Adjustable channel time base
  • 65,000 frames waveform record
  • 8-inch TFT LCD, WVGA (800 x 480)
  • Interfaces: USB Host, USB device, LAN, AUX

Specifications of UNI-T 4 Channel UPO2104E Ultra Phosphor Oscilloscope:

Display 8 inches TFT color LCD Display with WVGA (800×480) resolution
Bandwidth 100MHz
Memory Depth 56Mpts (single channel)
Size 336mm×164mm×108mm
Input Impedance (1MΩ±2%) II (20pF±3pF)
Sampling Rate 1GS/s
Channels 4
Frequency counter Hardware 6 bits counter (Channels areselectable)
Power 100V~240VAC, 50Hz/60Hz
Product Name Uni-T 4 Channel UPO2104E Ultra Phosphor Oscilloscope
Vertical scale 1mV/div~20V/div (1MΩ)
Waveform capture rate 83,000wfms/s
Waveform record 65,000 Frames
Weight 3.5kg
